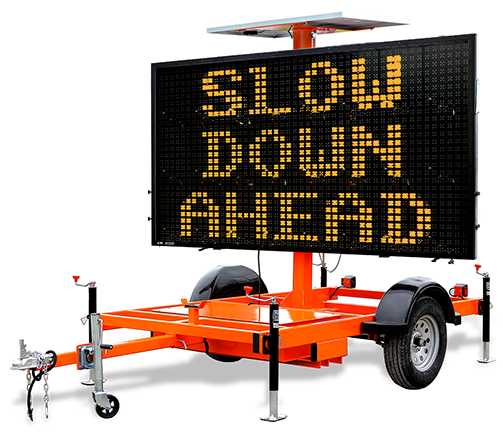

MB9757
Features
- Global Wireless Operation Option
- Maintenance Free Batteries
- Long Lasting Battery Life
- Sealed Battery Box
- Single 140 Watt Solar Panel
- Meets MUTCD standards
- Auto Dimming
- Super Bright LED Technology
- 360° of Rotation
- Durable Powder Coat Paint
- (4) Adjustable Corner Jacks and (1) Tongue Jack
- Sleek Frame Design
A more compact version of our MB14281 Full Matrix Message Board. Enjoy wireless messaging functionality from virtually anywhere using K&K Systems’ proprietary communication system, the CrossTalk® Message Controller. The CrossTalk user-friendly web-based software
let’s you program multiple lines of 12” high alphanumeric text and MUTCD graphics. Choose from predefined messages and graphics/animations or create a custom message to display on this all LED board.
WIRELESS
PROGRAMMING
With K&K Systems’ optional wireless connectivity you can easily change messages remotely with internet access. Compatible with Android and IOS devices.
ON-BOARD, BLUETOOTH OR ONLINE PROGRAMMING
Choose from K&K Systems’ on-board controller or wireless remote programming via the CrossTalk Controller and web interface.
Trailer
Width: 68”
Length with tongue: 148.25”
Length without tongue: 98.5”
Transport Height: 105”
Salt Spray: 1,000 hours
Paint: Powder Coat
Main frame: 3” x 5” x 1/8”
Front/Rear Cross members: 3” x 3” x 1/8”
Wheels: 15”
Axle: 3500lbs leaf spring
Fenders: 16 gauge bolt on
Jacks: (4) adjustable corner jacks & tongue jack with wheel
Hitch: 2” ball
Display Modules
Pixel Matrix: 27x48 Pixel Arrangement
LED Module: Each is 6x9 matrix
LED’s Per Pixel: 3
LED Type: Agilent amber 592NM
Viewing Angle: 30 degrees
Visibility: 4800 feet
Hours: 100,000 hour LED
Lines: Displays 3 lines of text and also displays Graphics
Characters per line: 8 (12 characters optional)
Character Height: 12”
*If one module fails the remainder of board is not affected.
Options
Locking lug nuts
Cell Modem
Radar
Pintle ring or bulldog hitch
Electric or hydraulic brakes
Custom Paint
Other Options available
DISPLAY ENCLOSURE
Construction: Extruded Aluminum 6063 alloy
Length: 97” Width: 57” Depth: 6”
Paint: Powder coat paint
Salt Spray: 1000 hours
UV Resistant: 500 hours
Seal: Weather resistant
Venting: Vented top and bottom
Front face: 1/8” Lexan UV matte finish
Raising and lowering of display: Winch
Power and Charging
Batteries: (4) 12 volt 675 combined amp batteries
Battery Charger: 110 Volt, 1000 watt, 60amp
Recharge: 24 hours
On-board diagnostics to monitor: Solar, battery, and load
Solar: (2) 80 watt Solar panels
Regulator: 30 amp regulator with low voltage & high
voltage disconnect.
Controller
Wireless Device: CrossTalk Controller
Online Programming: Yes
Controller Display: Any internet connected device
(computer, tablet, smartphone)
Data Entry: Web-based software
*“Auto Resume” after power failure
Software
Website: www.kkCrossTalk.com
Preset Messages: 121 messages and MUTCD arrows
User Custom Messages: Yes
Message Timing: Variable from .5 - 30 seconds
Protection: Password
Memory: Non-volatile
