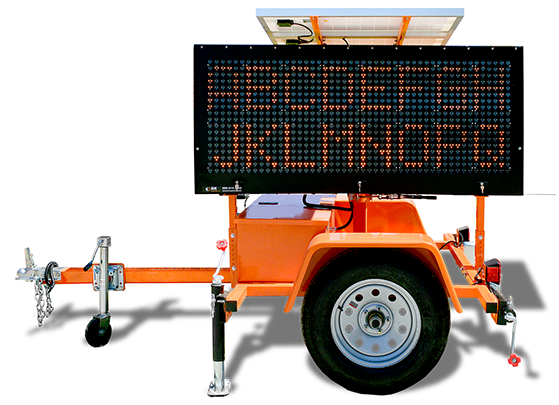

MB6038WT

2-LINE

Trailer

Width: 79”

Length with tongue: 174”

Length without tongue: 128”

Transport Height: 124”

Salt Spray: 1,000 hours

Paint: Powder Coat

Main frame: 3”x5”x1/8”

Front/Rear Cross members: 3”x3”x1/8”

Wheels: 15”

Axle: 3500lbs leaf spring

Fenders: 16 gauge bolt on

Jacks: (4) adjustable corner jacks & tongue jack with wheel.

Hitch: 2” ball



Display Modules

Pixel Matrix: 21x40 Pixel Arrangement

LED Module: Each is 5x7 matrix

LED’s Per Pixel: 4

LED Type: Agilent amber 592NM

Viewing Angle: 30 degrees

Visibility: 4800 feet

Hours: 100,000 hour LED

Lines: Display 2 lines of text

Characters per line: 8 (12 characters optional)

Character Height: 8”

*If one module fails the remainder of board is not affected.



Options

Locking lug nuts

Cell Modem

Radar

Pintle ring or bulldog hitch

Electric or hydraulic brakes

Custom Paint

Other Options available







DISPLAY ENCLOSURE

Construction: Extruded Aluminum 6063 alloy

Length: 60” Width: 38” Depth: 6”

Paint: Powder coat paint

Salt Spray: 1000 hours

UV Resistant: 500 hours

Seal: Weather resistant

Venting: Vented top and bottom

Front face: 1/8” Lexan UV matte finish

Raising and lowering of display: Winch



Power and Charging

Batteries: (2) 6 volt 225 amp batteries

Battery Charger: 110 Volt, 1000 watt, 60amp

Recharge: 24 hours

On-board diagnostics to monitor: Solar, battery, and load

Solar: 120 watt of solar

Regulator: 30 amp regulator with low voltage & high

voltage disconnect.



Controller

Preprogrammed Messages: 260

User programmable: 100

Message Timing: Slow, medium, fast

Dimming: Auto or Manual

Protection: Password

Quick Message Selection: Thumb wheel to quickly select

between 16 user programmable messages.

Controller Display: LCD

Data Entry: Mini Keyboard

Memory: Non volatile

*Pre-wired to accommodate radar,cell modem, and PC

*“Auto Resume” after power failure
