SAFETY IN THE RIGHT DIRECTION
We manufacture Arrow Boards in 14, 15, and 25 lamp models in various sizes with numerous mounting options including over the cab, rail, hitch, and skid. Choose from 90 degree, 180 degree or low profile mounts. The low profile mount with auto raise/lower has a 12V linear actuator with built-in limit switches and 6" stroke.

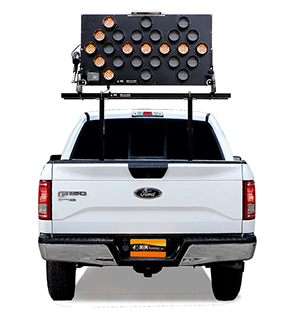

K&K Systems’ announces a first in the industry - the TruWireless. TruWireless integrates solar power and wireless connectivity to eliminate all wiring to the vehicle. This innovation let's you literally bolt the unit on your truck and put it into service. We call it Mount & Go. TruWireless provides hassel-free flexibility to move it from truck to truck.
|||||
15 AND 25 LAMP MODELS
30" x 60"
36" x 72"
ATTENUATOR MODELS
Model# Scorpion / Vorteq
* Arrow Board and Mount Only
14 LAMP MODEL
K&K Systems’ Silhouette 14 Lamp Arrow Board is designed specifically to be vehicle-mounted. It is uniquely designed to be lightweight and aerodynamic while maintaining the functionality of the popular full size 15-lamp arrow board. Additionally, because it's smaller and lighter it can be mounted to a headache rack, a truck tailgate, or a trailer hitch.
SILHOUETTE
Features
- Meets MUTCD standards
- Super-bright LED technology,100,000 hour rating
- 360 Degree visors protect LED modules
- Sizes: 30"x60", 36" x 72", and 48"x96"
- 15 and 25 lamp configurations with 8 or 13 functions
- Independent module operation
- Auto dimming capability
- 30-40 Flash Rate
- Extruded aluminum frame
- Single Aluminum Backskin
- Powder coat finish
- Mounting options

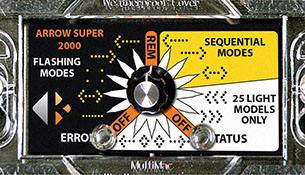

Optional RemotE Available
Optional wireless or wired remotes are available for easy operation and mode selection.
Selector modes
15 Lamp Models have 8 modes
25 Lamp Models have 15 modes
Display Modules
Construction: Height: 48”
Length: 96”
Width: 3 3/8”
Material:
• .125 Aluminum frame 48”x96” w/ (2) 47¾” cross members
• 3mm Aluminum front panel 48”x96”
• 3mm Aluminum back panel 48”x96”
Salt Spray Fog: 1,000 hours
UV Resistance: 500 hours
LED bulbs: (15) yellow/amber Par 46 LED’s with 360° high impact plastic visor. Push on type connectors to prevent separation due to vibration during travel and operation.
Options
- Three small amber indicator lights added to the back
- of display.
- Convert Vehicle Mounted Arrow Boards to AC by
- adding 20W power supply (includes wiring).
- Upgrade to 25’ wiring harness data cable.
- Upgrade to 40’ wiring harness data cable.
- Upgrade to 60’wiring harness data cable.
- Hitch mount.
- Low profile mount.
- Over cab mount. Also requires (low profile mount)
- Upgrade to 60’ wiring harness data cable.
- Tailgate mount.
- Actuator for Vehicle Mounted Arrow Board – 600 lb;
- includes 12’ cable.
- Upgrade to 25’ actuator cable.
- Upgrade to 40’ actuator cable.
- Upgrade to 60’ actuator cable.
- Two-tube frame for rail mount.
