AVIATION

CONTROL SYSTEMS

Status reporting at your fingertips anytime, anywhere

+

=

The K&K Aviation Control System combines K&K’s CrossTalk Advanced Technology with our Aviation LED Beacon Series for optimal beacon monitoring efficiency. This system has been designed to monitor and report the status of aviation lighting anytime, anywhere. K&K Systems’ proprietary communication device, the CrossTalk, using its’ password protected, cloud-based software allows you to monitor and receive status logs on a single beacon or multiple beacons in multiple locations from any internet connected device. Each Aviation Beacon System has a CrossTalk device located inside the control box. It constantly monitors the beacon’s daylight and night activation, usage, and even failure. In the event of a failure, the CrossTalk immediately sends a notification to the predesignated technician via email and text message so a beacon outage time is minimal.



Contact us today to manage manpower and lighting efficiently tomorrow.

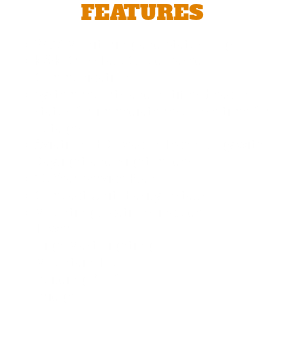

Features 24/7 Monitoring and Status Logs K&K CrossTalk Cloud-Based Communication System reports and notifies beacon status for immediate response time for outages Aviation LED Beacon Technology with Daylight and Night modes 10 Year Service Plan Compact Unit Easily Installs Mounting locations include: Tower High Mast Lighting Mountain Top Building Roof Bridge

Specifications



aviation LED beacon

Operating Voltage:  AC90-260V

Power Consumption: <40W (daylight) <15W (night)

Flashing Frequency: 20-60 times/minute

Light Intensity: >20000cd (white) / 2000cd (red)

Life Span: >100,000 hours

Emitting Colors: White/Red

Beam Angle: 360° horizontal, more than 3° vertical spread

Overall Size: 10.55” x 8.11”

Weight: 16 lbs.

Optical Sensitivity: 100 Lux

Operating Temperature: -40° F to 131° F



Control Cabinet

Construction: All Aluminum

Seal: Weather Resistant

Closure: Hinged



Crosstalk Controller

- On-board 4G/LTE/LTE-M cellular modem

- Built-in solar controller with Maximum Power-Point Tracking (MPPT) and 3-stage

 battery charging

- On-board 900MHz local-area wireless (optional). Support for XBee and Bluetooth (future)

- Compact size, rugged panel-mount enclosure.

- Real-Time Clock / Calendar (RTCC).

- Digital / PWM out (4) with current sensing

- Dry-contact / switch input (1)

- Digital inputs (2) 5-30VDC

- External RS-232 serial port

- Low-voltage disconnect (LVD) battery management

- Extended temperature operation: -40 to +85 deg C



Options

- L-810 Obstruction Light

- Stainless Steel Control Cabinet

- Spun Aluminum Mounting Post



Example of compact unit

for easy installation

Clean designed control cabinet for simple maintenance

Video of installation in Kentucky

Emits Red Light for Night Hours



Emits White Light for Daylight Hours
